Two ways to load a text file into FPGA or the initial values to a memory in Verilog/ VHDL (synthesizable)

The first way is to load the text file or image into memory by initializing it in Verilog/ VHDL code:

 load a text file into FPGA

       1. Verilog example code:

// fpga4student.com FPGA projects
// Verilog projects, VHDL projects
reg [15:0] rom[15:0];
       initial
       begin
        rom[0] = 16'b1000000110000000;
        rom[1] = 16'b0010110011100100;
        rom[2] = 16'b1100010000000011;
        rom[3] = 16'b0001000111000000;
        rom[4] = 16'b1110110110000001;
        rom[5] = 16'b1100000001111011
        rom[6] = 16'b0100001000000000;
        rom[7] = 16'b0010000000001000;
        rom[8] = 16'b0011000010000000;
        rom[9] = 16'b0000000000000000;
        rom[10] = 16'b0000000000100000;
        rom[11] = 16'b0000000110000000;
        rom[12] = 16'b0001100000000000;
        rom[13] = 16'b0100000010000000;
        rom[14] = 16'b0000100110000000;
        rom[15] = 16'b0100010000010000;
       end

     2. VHDL example code:

-- fpga4student.com FPGA projects, Verilog projects, VHDL projects
subtype your_word is std_logic_vector(7 downto 0);
type your_array is array (0 to 63) of your_word;
constant rom : your_array := ( "00001011",
"00000010","00000001","00000001",
"00000010","00000010","00000001",
"00000001","00000010","00000001",
"00001010","00000010","00000010",
"00000001","00000011","00000001",
"00000001","00000001","00001000",
"00000010","00000001","00000001",
"00000001","00011110","00000000",
"00001001","00000111","00000111",
"00000000","00000000","00000101",
"00001100","00000100","00001000",
"00000000","00000000","00000000",
"00000000","00000000","00000000",
"00000000","00000000","00000000",
"00000000","00000000","00000000",
"00000000","00000000","00000000",
"00000000","00000000","00000000",
"00000000","00000000","00000000",
"00000000","00000000","00000000",
"00000000","00000000","00000000",
"00000000","00000000","00000000");

    By doing so, the initial values would be loaded into FPGA during synthesis. In case that you want to load a text file into FPGA, you have to convert the text file to binary data and initialize it in Verilog/ VHDL code. A text file can be easily converted to binary data using Matlab code. For verilog code, you can also use $readmemh(for hexadecimal data) or $readmemb(for binary data) command to load a converted text file directly.

The second way to load a text file into FPGA:


       1. If you are using Altera FPGA, you can use megafunction in the MegaWizard Plug-In Manager in Quartus II to initialize a block memory to store a text file with an initialization data file. You text file should be converted to your_text_file.mif as the memory initialization file which contains the binary data of the text file. A sample mif file is here.

load text file into FPGA using Verilog/ VHDL




  You can read more details the process how to use Megafunction in the Altera website: User guide memory initialization

      2. If you are using Xilinx FPGA, Xilinx has Core Generator to generate a block memory with initialization content. The initial data file is in format .coe. A sample coe file is here or below:

load text file into FPGA using Verilog/ VHDL

Below is an example of COE file.
; An initialization file for a
; 16-bit wide by 8 deep RAM
memory_initialization_radix = 16;
memory_initialization_vector = 0000, 1111, 2222, 3333, 4444, 5555, 6666, 7777;

You can read more details how to generate a block memory using CORE Generator in Xilinx ISE :
Block memory Generator Xilinx

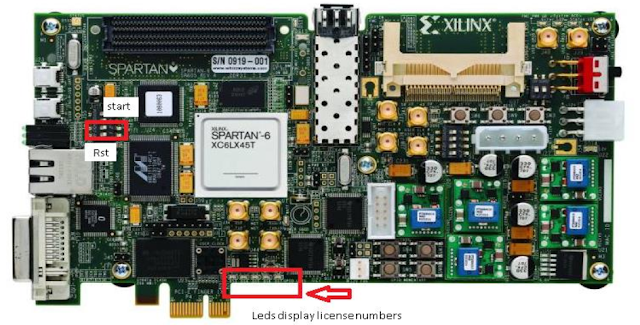

Example loading text file into FPGA and running on FPGA: here
How to load a text file in a testbench Verilog/ VHDL code for simulation:
- For Verilog testbench code: here

- For VHDL testbench code: here
